Description
RadioEar 3045 Adult audiometric headset with DD45 transducers.
Specs
| Item | Specification |
|---|---|
| Model | P4493 |
| Headband | HB3045 |
| Transducer | DD45 |
| Cable Length | 2 m |
| Plug Type | 30º, 2x 6.3 mm gold-plated mono jack |
| Standards | ANSI S3.6-2010; IS0389-1 1998 |
| Earphone Receiver | Dynamic moving coil, specially built for audiometry |
| Nominal Impedance | 10 ohm |

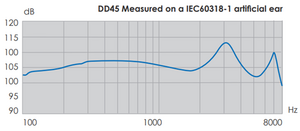

| Frequency Response | 100 Hz - 8 kHz |
| Linearity | Linear up to 500 mW |
| Sensitivity 1mW | Typically 106.7 dB SPL re. 20 µPa output with 1 mW input, f=1 kHz |
| Sensitivity 1Vrms | Typically 126.7 dB SPL @ 1Vrms |
| Harmonic Distortion | Below 1% at 120 db SPL, f=kHz |
| Cable Connector | 2 terminals with 4 mm holes and 2 mm screw |
| Weight Complete | 59 gram (2 oz) |
| Environmental | RoHS compatible; Lead and nickel-free; Bio compatible |
